Connect Local dbt with MSSQL Server

This guide will take you through the steps to create a project with dbt and connect it to a Microsoft SQL Server (MSSQL) database.

Steps to follow

  1. Create .dbt Folder: Create a .dbt folder in your user directory, e.g., C:\Users\dwaip\.dbt.

  2. Add profiles.yml: Inside the .dbt folder, place a profiles.yml file with the following content:

# Das: This profiles.yml configuration is tested for:
# - SQL Server 2022 build 16.0.1121.4
# - Python 3.12.3
# - Registered adapter: sqlserver=1.7.4
# - dbt version: 1.7.18
# - Authentication: Windows Login

# Profile name should match what's in your dbt_project.yml
hello_mssql:

# 'target' specifies the environment (e.g., dev, prod)
target: dev

# 'outputs' define configurations for environments
outputs:

   # Configuration for the 'dev' environment
   dev:

      # Database type
      type: sqlserver

      # ODBC driver for SQL Server
      driver: 'ODBC Driver 17 for SQL Server'

      # SQL Server name or IP
      server: 'MOMO'

      # Default port for SQL Server
      port: 1433

      database: 'InsuranceDB'
      schema: 'dbo'

      # Use Windows login credentials
      trusted_connection: true

      # Enable encryption for data transmission
      encrypt: true

      # Trust the server's SSL certificate (useful for self-signed certificates)
      trust_cert: true

  1. Create Project Folder: Create a new folder on your laptop, e.g., dbt_projects, and navigate (CD) into it.

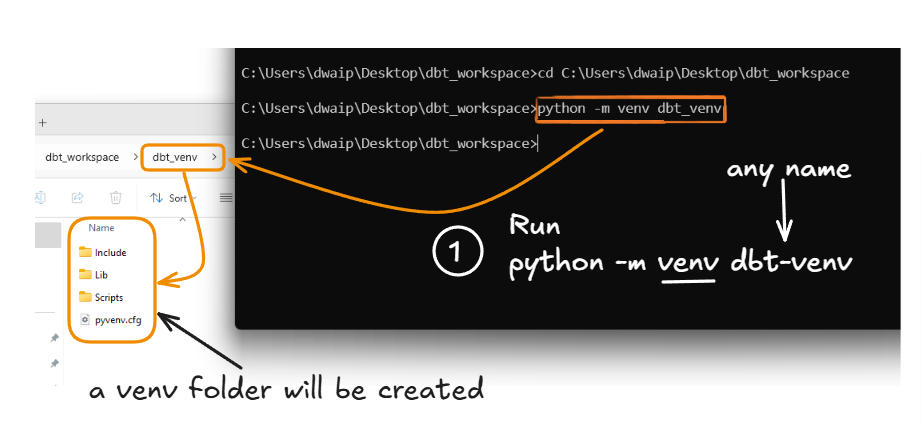

  2. Set Up Virtual Environment: Inside your project folder, create a virtual environment by running python -m venv dbt_venv.

  1. Activate Virtual Environment: Activate the virtual environment by running .\Scripts\activate. The activate.bat or activate.ps1 file is inside the Scripts folder.

  2. Install dbt and Adapter: Install dbt core and the SQL Server adapter by running pip install dbt-core dbt-sqlserver. Replace dbt-sqlserver with the appropriate adapter name if needed.

  3. Initialize dbt Project: Initialize your dbt project by running dbt init [project_name], e.g., dbt init hello_mssql. This will create a folder named hello_mssql. Ensure the project name matches the one in your profiles.yml.

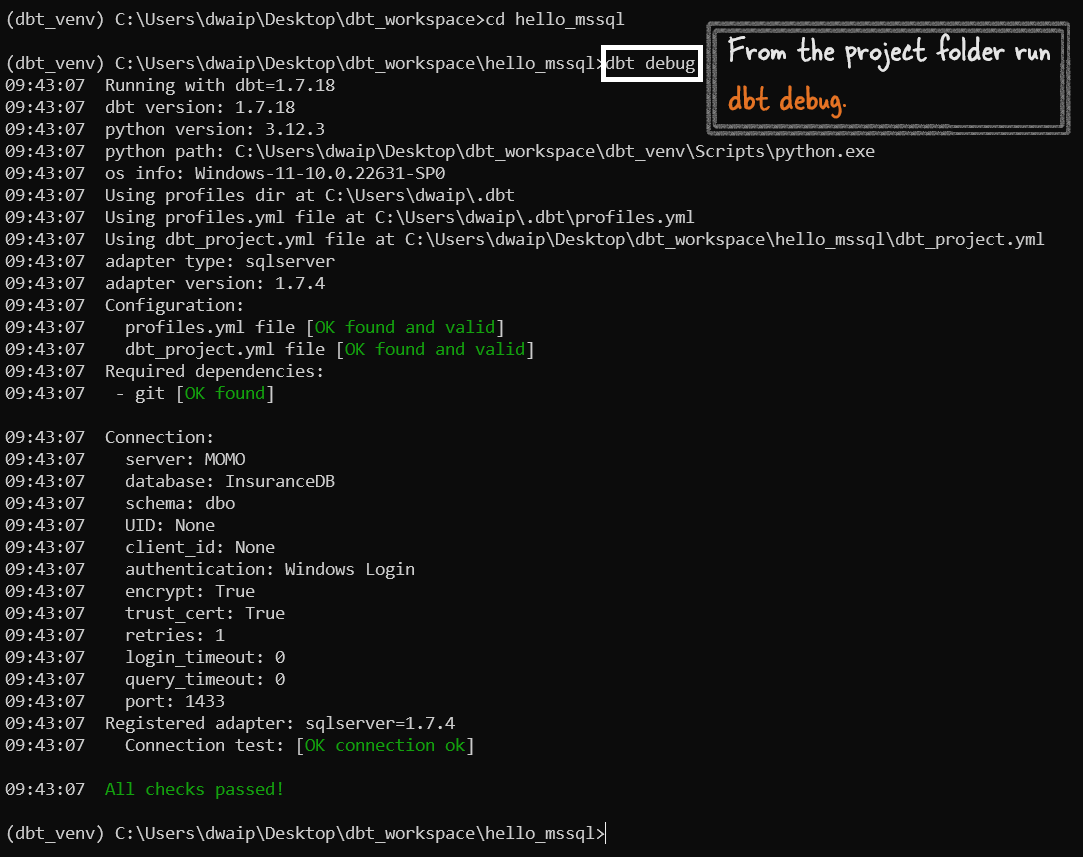

  4. Run dbt Debug: Navigate (CD) into the hello_mssql folder and run dbt debug. Ensure you run dbt debug from inside the project folder.

Connect Local dbt with Databricks

  1. Set Up .dbt Folder: Create a .dbt folder in your user directory, e.g., C:\Users\dwaip\.dbt.

  2. Add profiles.yml: Inside the .dbt folder, place a profiles.yml file with the following content:

databricks:
  outputs:
    dev:
      type: databricks
      server_host: [databricks_host_url]
      http_path: [http_path]
      token: [access_token]
      schema: [schema_name]
      catalog: [catalog_name] # optional
      warehouse: [warehouse_name] # optional
  target: dev

Replace [databricks_host_url], [http_path], [access_token], [schema_name], [catalog_name], and [warehouse_name] with your specific details.

  1. Create Project Folder: Create a new folder on your laptop, e.g., dbt_projects, and navigate (CD) into it.

  2. Set Up Virtual Environment: Inside your project folder, create a virtual environment by running python -m venv dbt_venv.

  3. Activate Virtual Environment: Activate the virtual environment by running .\Scripts\activate. The activate.bat or activate.ps1 file is inside the Scripts folder.

  4. Install dbt and Adapter: Install dbt core and the Databricks adapter by running pip install dbt-core dbt-databricks.

  5. Initialize dbt Project: Initialize your dbt project by running dbt init [project_name], e.g., dbt init hello_databricks. This will create a folder named hello_databricks. Ensure the project name matches the one in your profiles.yml.

  6. Run dbt Debug: Navigate (CD) into the hello_databricks folder and run dbt debug. Ensure you run dbt debug from inside the project folder.

Errors

1. Profiles.yml File is Invalid

Error:

When running dbt debug, an error appeared saying the profiles.yml file was invalid, with the message: 'yes' is not valid under any of the given schemas.

Resolution:

Change the value of trusted_connection from 'yes' to true (without quotes) in the profiles.yml file. This ensures dbt correctly recognizes the trusted connection setting.

2. dbt_project.yml File Not Found

Error:

The dbt debug command failed because the dbt_project.yml file was not found in the project directory.

Resolution:

Create a dbt_project.yml file in the project directory and ensure it correctly references the profile name used in the profiles.yml file.

3. Could Not Find Profile Named 'hello_mssql'

Error:

An error occurred because dbt couldn't find a profile named hello_mssql, even though the profile was set up in the profiles.yml.

Resolution:

Ensure that the profile in dbt_project.yml matches the profile name in profiles.yml. For example, if the profile name is mssql_server in profiles.yml, make sure dbt_project.yml references mssql_server.

4. SSL Certificate Not Trusted

Error:

The connection to SQL Server failed with the error: The certificate chain was issued by an authority that is not trusted.

Resolution:

To resolve this, add trust_cert: true to your profiles.yml file. This will bypass the SSL certificate validation error and allow dbt to connect to SQL Server.

Connect Local dbt with spark

Further reading https://github.com/dbt-labs/dbt-spark
