Use Azure Synapse Serverless SQL Pool to Query Files in a Data Lake

What are Serverless SQL pools and what they are capable of?

Serverless SQL pools are less expensive SQL databases. Compared to Dedicated SQL pool which is more expensive and you have to pay it if you use it or not. Serverless sql pools are good for on-demand data query.

Query CSV, JSON, and Parquet Files Using a Serverless SQL Pool

Querying CSV Files:

SELECT TOP 100 *
FROM OPENROWSET(
    BULK 'https://mydatalake.blob.core.windows.net/data/files/*.csv',
    FORMAT = 'csv',
    PARSER_VERSION = '2.0'
) WITH (
    product_id INT,
    product_name VARCHAR(20) COLLATE Latin1_General_100_BIN2_UTF8,
    list_price DECIMAL(5,2)
) AS rows

Querying JSON Files:

SELECT doc
FROM OPENROWSET(
    BULK 'https://mydatalake.blob.core.windows.net/data/files/*.json',
    FORMAT = 'csv',
    FIELDTERMINATOR ='0x0b',
    FIELDQUOTE = '0x0b',
    ROWTERMINATOR = '0x0b'
) WITH (doc NVARCHAR(MAX)) as rows

Querying Parquet Files:

SELECT *
FROM OPENROWSET(
    BULK 'https://mydatalake.blob.core.windows.net/data/orders/year=*/month=*/*.*',
    FORMAT = 'parquet'
) AS orders
WHERE orders.filepath(1) = '2020'
  AND orders.filepath(2) IN ('1','2');

Create External Database Objects in a Serverless SQL Pool

Creating a Database:

CREATE DATABASE SalesDB
    COLLATE Latin1_General_100_BIN2_UTF8

Creating an External Data Source:

CREATE EXTERNAL DATA SOURCE files
WITH (
    LOCATION = 'https://mydatalake.blob.core.windows.net/data/files/'
)

Using External Data Source in Queries:

SELECT *
FROM OPENROWSET(
    BULK 'orders/*.csv',
    DATA_SOURCE = 'files',
    FORMAT = 'csv',
    PARSER_VERSION = '2.0'
) AS orders

Creating a Database Scoped Credential:

CREATE DATABASE SCOPED CREDENTIAL sqlcred
WITH
    IDENTITY = 'SHARED ACCESS SIGNATURE',
    SECRET = 'sv=xxx...';
GO

CREATE EXTERNAL DATA SOURCE secureFiles
WITH (
    LOCATION = 'https://mydatalake.blob.core.windows.net/data/secureFiles/',
    CREDENTIAL = sqlcred
);
GO

Creating an External File Format:

CREATE EXTERNAL FILE FORMAT CsvFormat
WITH (
    FORMAT_TYPE = DELIMITEDTEXT,
    FORMAT_OPTIONS (
        FIELD_TERMINATOR = ',',
        STRING_DELIMITER = '"'
    )
);
GO

Creating an External Table:

CREATE EXTERNAL TABLE dbo.products
(
    product_id INT,
    product_name VARCHAR(20),
    list_price DECIMAL(5,2)
)
WITH
(
    DATA_SOURCE = files,
    LOCATION = 'products/*.csv',
    FILE_FORMAT = CsvFormat
);
GO

-- Query the table
SELECT * FROM dbo.products;

How to transform data using a serverless SQL pool

Use a CREATE EXTERNAL TABLE AS SELECT (CETAS) Statement to Transform Data

Steps: 1. Create External Data Source:

CREATE EXTERNAL DATA SOURCE files
WITH (
    LOCATION = 'https://mydatalake.blob.core.windows.net/data/files/',
    TYPE = BLOB_STORAGE,  -- For serverless SQL pool
    CREDENTIAL = storageCred
);

  1. Create Database Scoped Credential:

    CREATE DATABASE SCOPED CREDENTIAL storagekeycred
WITH
    IDENTITY='SHARED ACCESS SIGNATURE',
    SECRET = 'sv=xxx...';

CREATE EXTERNAL DATA SOURCE secureFiles
WITH (
    LOCATION = 'https://mydatalake.blob.core.windows.net/data/secureFiles/',
    CREDENTIAL = storagekeycred
);

  2. Create External File Format:

    CREATE EXTERNAL FILE FORMAT ParquetFormat
WITH (
    FORMAT_TYPE = PARQUET,
    DATA_COMPRESSION = 'org.apache.hadoop.io.compress.SnappyCodec'
);

  3. Use CETAS to Transform Data:

    CREATE EXTERNAL TABLE SpecialOrders
    WITH (
        LOCATION = 'special_orders/',
        DATA_SOURCE = files,
        FILE_FORMAT = ParquetFormat
    )
AS
SELECT OrderID, CustomerName, OrderTotal
FROM
    OPENROWSET(
        BULK 'sales_orders/*.csv',
        DATA_SOURCE = 'files',
        FORMAT = 'CSV',
        PARSER_VERSION = '2.0',
        HEADER_ROW = TRUE
    ) AS source_data
WHERE OrderType = 'Special Order';

Encapsulate a CETAS Statement in a Stored Procedure

Benefits: - Reduces network traffic. - Provides a security boundary. - Eases maintenance. - Improves performance.

Example Stored Procedure:

CREATE PROCEDURE usp_special_orders_by_year @order_year INT
AS
BEGIN
    -- Drop the table if it already exists
    IF EXISTS (
            SELECT * FROM sys.external_tables
            WHERE name = 'SpecialOrders'
        )
        DROP EXTERNAL TABLE SpecialOrders

    -- Create external table with special orders
    -- from the specified year
    CREATE EXTERNAL TABLE SpecialOrders
        WITH (
            LOCATION = 'special_orders/',
            DATA_SOURCE = files,
            FILE_FORMAT = ParquetFormat
        )
    AS
    SELECT OrderID, CustomerName, OrderTotal
    FROM
        OPENROWSET(
            BULK 'sales_orders/*.csv',
            DATA_SOURCE = 'files',
            FORMAT = 'CSV',
            PARSER_VERSION = '2.0',
            HEADER_ROW = TRUE
        ) AS source_data
    WHERE OrderType = 'Special Order'
    AND YEAR(OrderDate) = @order_year;
END

Include a Data Transformation Stored Procedure in a Pipeline

Pipeline Activities: 1. Delete Activity: Deletes the target folder for the transformed data in the data lake if it already exists. 2. Stored Procedure Activity: Connects to your serverless SQL pool and runs the stored procedure that encapsulates your CETAS operation.

Example Pipeline Steps: - Delete Target Folder: - Use a Delete activity to remove the existing folder. - Run Stored Procedure: - Use a Stored procedure activity to execute the usp_special_orders_by_year procedure.

Benefits: - Schedules operations to run at specific times or based on events (e.g., new files added to the source storage location).

Create a Lake Database in Azure Synapse Analytics

Understand Lake Database Concepts and Components

Traditional Relational Database: - Schema composed of tables, views, and other objects. - Tables define entities with attributes as columns, enforcing data types, nullability, key uniqueness, and referential integrity. - Data is tightly coupled with table definitions, requiring all manipulations to be through the database system.

Data Lake: - No fixed schema; data stored in structured, semi-structured, or unstructured files. - Analysts can work directly with files using various tools, without relational database constraints.

Lake Database: - Provides a relational metadata layer over files in a data lake. - Includes definitions for tables, column names, data types, and relationships. - Tables reference files in the data lake, allowing SQL queries and relational semantics. - Data storage is decoupled from the database schema, offering more flexibility.

Components: - Schema: Define tables and relationships using data modeling principles. - Storage: Data stored in Parquet or CSV files in the data lake, managed independently of database tables. - Compute: Use serverless SQL pools or Apache Spark pools to query and manipulate data.

Describe Database Templates in Azure Synapse Analytics

Lake Database Designer: - Start with a new lake database on the Data page. - Choose a template from the gallery or start with a blank database. - Add and customize tables using the visual database designer interface.

Creating Tables: - Specify the type and location of files for storing underlying data. - Create tables from existing files in the data lake. - Store database files in a consistent format within the same root folder.

Database Designer Interface: - Drag-and-drop surface for editing tables and relationships. - Specify names, storage settings, key usage, nullability, and data types for columns. - Define relationships between key columns in tables. - Publish the database when the schema is ready for use.

Create a Lake Database

Steps: 1. Create a Lake Database: - Use the lake database designer in Azure Synapse Studio. - Add a new lake database on the Data page. - Select a template or start with a blank database. - Add and customize tables using the visual interface.

  1. Specify Table Settings:

    • Define the type and location of files for data storage.
    • Create tables from existing files in the data lake.
    • Ensure all database files are in a consistent format within the same root folder.

  2. Database Designer Features:

    • Drag-and-drop interface to edit tables and relationships.
    • Define schema by specifying table names, storage settings, columns, and relationships.
    • Publish the database to start using it.

Use a Lake Database

Using a Serverless SQL Pool: - Query lake database tables using a serverless SQL pool in a SQL script. - Example:

USE RetailDB;
GO

SELECT CustomerID, FirstName, LastName
FROM Customer
ORDER BY LastName;
- No need for OPENROWSET function; the serverless SQL pool handles file mapping.

Using an Apache Spark Pool: - Work with lake database tables using Spark SQL in an Apache Spark pool. - Example to insert a new record:

%%sql
INSERT INTO `RetailDB`.`Customer` VALUES (123, 'John', 'Yang')
- Example to query the table:
%%sql
SELECT * FROM `RetailDB`.`Customer` WHERE CustomerID = 123

Transform Data with Spark in Azure Synapse Analytics

Use Apache Spark to Modify and Save Dataframes

Modify and Save Dataframes: - Load Data: Use spark.read to load data into a dataframe.

order_details = spark.read.csv('/orders/*.csv', header=True, inferSchema=True)
display(order_details.limit(5))

  • Transform Data: Use dataframe methods and Spark functions for transformations.

    from pyspark.sql.functions import split, col

# Create new columns and remove the original column
transformed_df = order_details.withColumn("FirstName", split(col("CustomerName"), " ").getItem(0)).withColumn("LastName", split(col("CustomerName"), " ").getItem(1))
transformed_df = transformed_df.drop("CustomerName")

display(transformed_df.limit(5))

  • Save Data: Save the transformed dataframe to the data lake.

    transformed_df.write.mode("overwrite").parquet('/transformed_data/orders.parquet')
print("Transformed data saved!")

Partition Data Files for Improved Performance and Scalability

Partitioning Data: - Create Derived Field and Partition Data:

from pyspark.sql.functions import year, col

# Load source data
df = spark.read.csv('/orders/*.csv', header=True, inferSchema=True)

# Add Year column
dated_df = df.withColumn("Year", year(col("OrderDate")))

# Partition by year
dated_df.write.partitionBy("Year").mode("overwrite").parquet("/data")

Filtering Partitioned Data: - Read Partitioned Data:

orders_2020 = spark.read.parquet('/partitioned_data/Year=2020')
display(orders_2020.limit(5))

Transform Data with SQL

Define Tables and Views: - Save Dataframe as an External Table:

order_details.write.saveAsTable('sales_orders', format='parquet', mode='overwrite', path='/sales_orders_table')

Query and Transform Data Using SQL: - Create Derived Columns and Save Results:

# Create derived columns
sql_transform = spark.sql("SELECT *, YEAR(OrderDate) AS Year, MONTH(OrderDate) AS Month FROM sales_orders")

# Save the results
sql_transform.write.partitionBy("Year","Month").saveAsTable('transformed_orders', format='parquet', mode='overwrite', path='/transformed_orders_table')

Query the Metastore: - Query the Transformed Data:

%%sql

SELECT * FROM transformed_orders
WHERE Year = 2021
    AND Month = 1

Drop Tables: - Clean Up Metastore:

%%sql

DROP TABLE transformed_orders;
DROP TABLE sales_orders;

Background

Here we will see how to handle data usig Spark in Synapse.

Let's get started

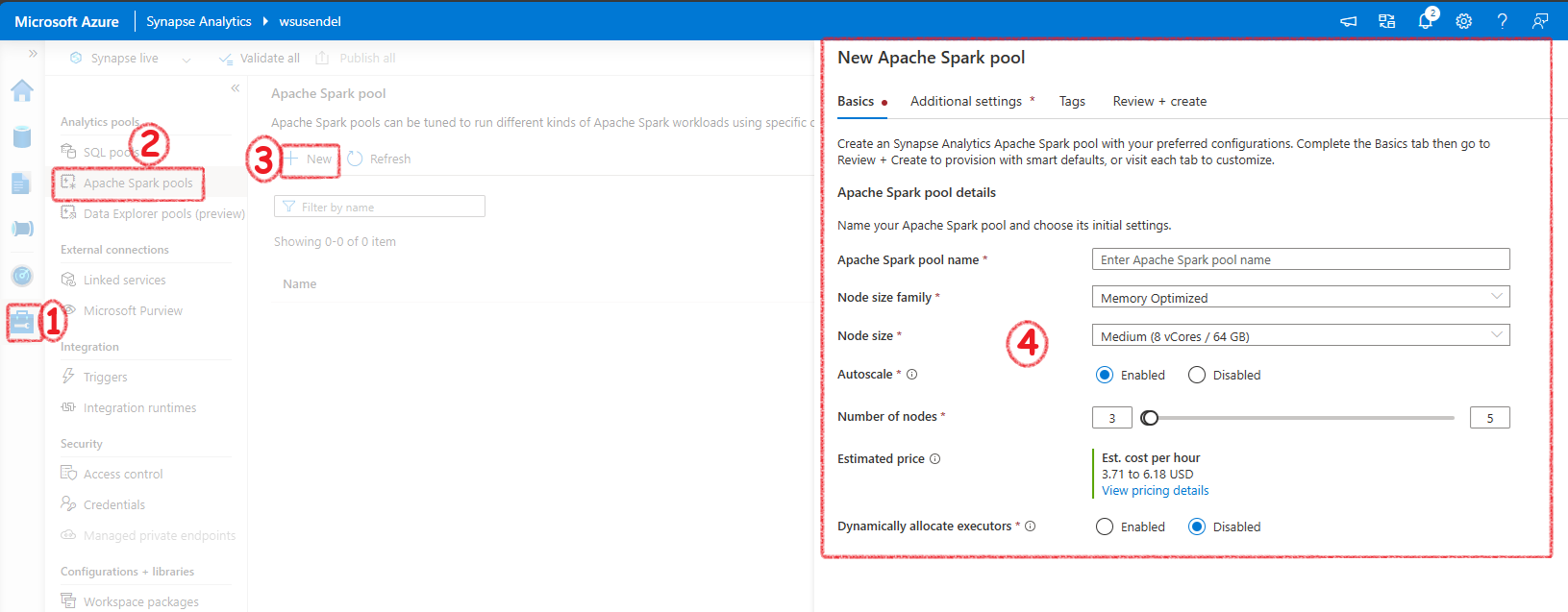

First thing we would need is a Spark Pool. The serverless Spark is similar to Serverless SQL Pool. That means, only when it is working you need to pay money. No need to worry when you are not proccessing anything. You wont be charged a penny. The spark pool decides the number of nodes in the actual spark cluster in the background. If you want to work with Spark, you must create a Serverless Spark pool.

In Azure Databricks and in general Spark enviorments you create a spark cluster. But, in synapse you create a Serverless Spark Pool. This pool manages the Spark cluster for you.

alt text

It will ahve auto pause etc.

Background

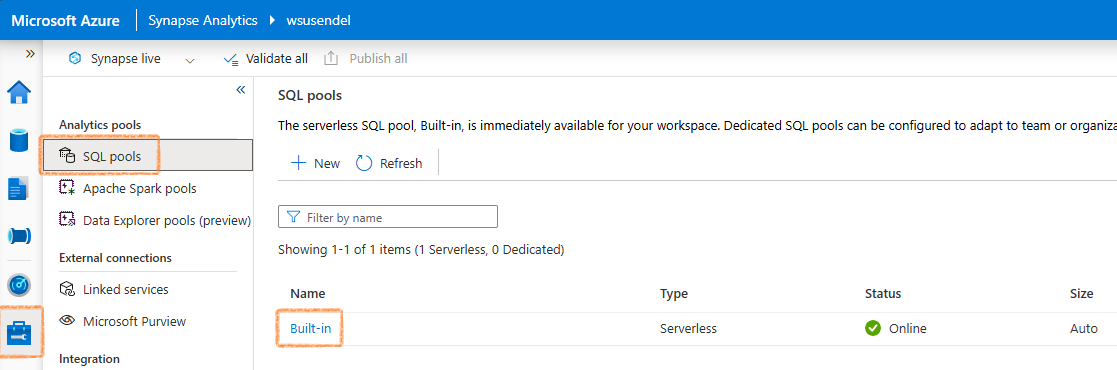

Here I will show you how to run query using Serverless SQL pool. Every SA workspae comes with a built-in serverless SQL pool. Its just an engine to run your SQL queries with no own storage. Just an engine.

Its built-in/serverless/online/Auto

alt text

Using Serverless SQL Pool

Let's get started

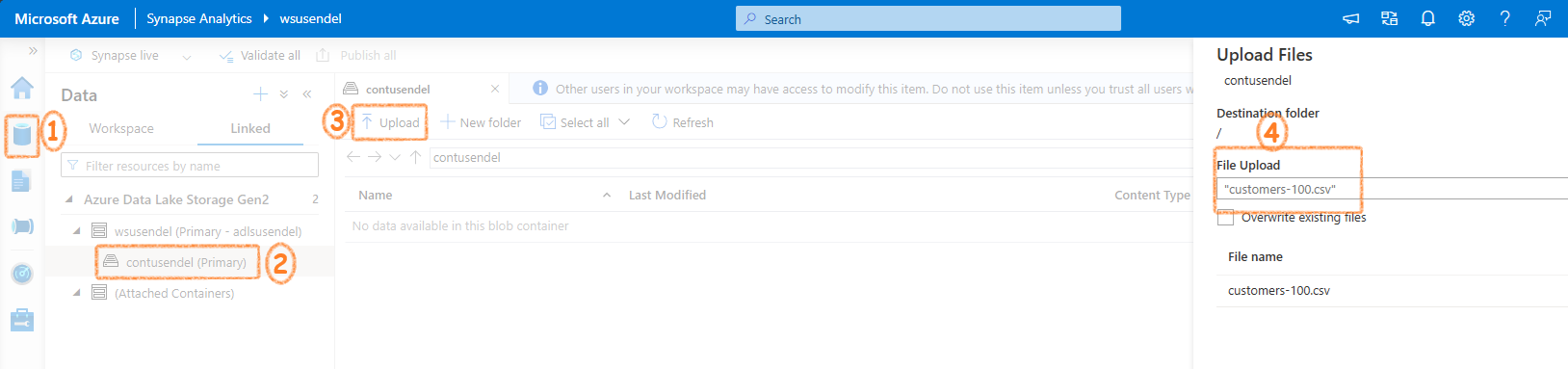

Firs let's upload some data. We know every SA workspace is connected to a default ADLS folder. Let's upload a csv file to it.

alt text

Let's run the script

SELECT *

FROM
OPENROWSET(
    BULK 'abfss://contusendel@adlsusendel.dfs.core.windows.net/customers-100.csv',
    FORMAT = 'csv',
    HEADER_ROW = TRUE,
    PARSER_VERSION = '2.0'
)AS [result]

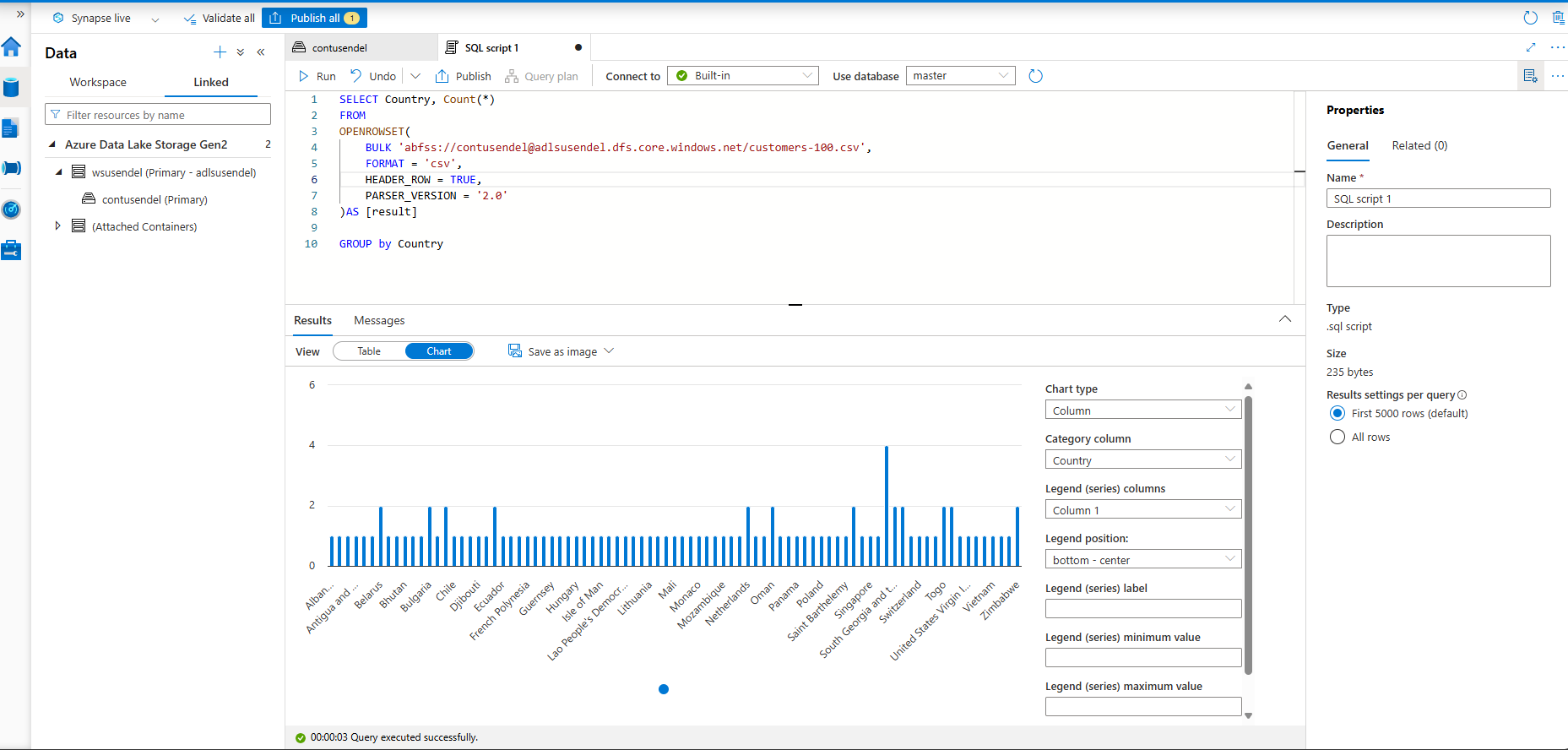

SELECT Country, Count(*)
FROM
OPENROWSET(
    BULK 'abfss://contusendel@adlsusendel.dfs.core.windows.net/customers-100.csv',
    FORMAT = 'csv',
    HEADER_ROW = TRUE,
    PARSER_VERSION = '2.0'
)AS [result]

GROUP by Country
alt text

Using Dedicated SQL Pool
